LB White Portable Foreman Series Indirect Fired Heaters

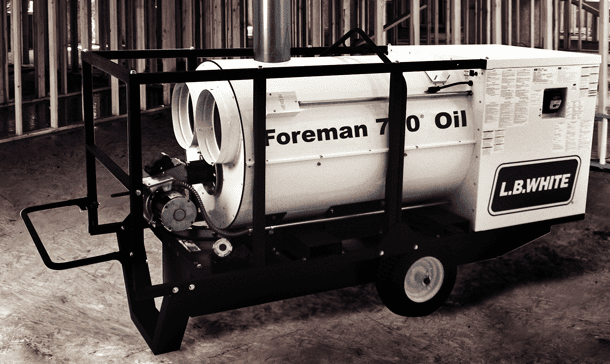

The Foreman is a vented portable heater ideal for providing dry, clean heat into insulated spaces, work areas, heating docks or anywhere 100% clean air is needed. L.B. White’s ductable Foreman heater features a fuel-saving high efficiency heat exchanger, quiet operation, and high CFM

  • 500,000 (DF & Oil) and 750,000 (DF) Btu/h models
  • LPG/NG dual fuel (switches with push of a lever) and Diesel models available
  • Air recirculation option
  • Ductable with 12″ (x2) or 16″ (x1) duct
  • Separate diagnostic light panels for burner and rest of unit
  • Dependable, electronic spark igntion
  • Stackable
  • Quiet burn with high CFM
  • Rugged, urethane wheels don’t go flat, yet absorb bumps like pneumatic tires
  • Remote thermostatic control available
  • Optional rain cap
  • Optional steel exhaust pipe extension
  • Easy access rear panel for maintenance
  • Easy to transport with top lifting bale and bottom fork pockets
Model Numbers: 500 DF 500 Oil 750 DF 750 Oil
BTU/H Rating 500,000 500,000 750,000 750,000
Fuel Type LP, NG Diesel LP, NG #1 or #2 Diesel
Fuel Consumption LP max (lbs./hr) 23.0 34.5
Fuel Consumption NG max (cu.ft/hr) 500.0 750.0
Fuel Consumption Diesel 1 or 2 max (gal/hr) 3.6 5.4
Inlet Gas Pressure LP min/max (in W.C.) 8/13.5 8/13.5
Inlet Gas Pressure NG min/max (in W.C.) 8/13.5 8/13.5
Outlet Static Pressure (in W.C.) 2.5 2.5 1.0 2.5
Tank Size/Operating Time 42 gal/11 hrs
Blower Fan Output (CFM) 3,457 3,457 4,280 4,280
Amps (Starting/Continuous Operation) 32.2/13.5 32.2/13.5 38/12 38/12
Electric Supply (Volts/Hz/Phase) 120/60/1 120/60/1 240/60/1 240/60/1
Motor Horsepower 1.5 1.5 2.0 2.0
Length (in.) 94.0 94.0 94.0 94.0
Width (in.) 32.0 32.0 32.0 32.0
Height (in.) 53.0 53.0 53.0 53.0
Shipping Weight (lbs.) 700.0 850.0 705.0 855.0
Burner Type Riello Beckett Riello Beckett
Single Point Lifting Bale S S S S
Fork Lift Holes S S S S
Self-Diagnostic System S S S S
No-Flat Wheels S S S S
Two 12″ Outlets* S S S S
20″ Air Recirculation Inlet S S S S
US/Canadian Certification Yes Yes Yes Yes
