WNC BPU 3050

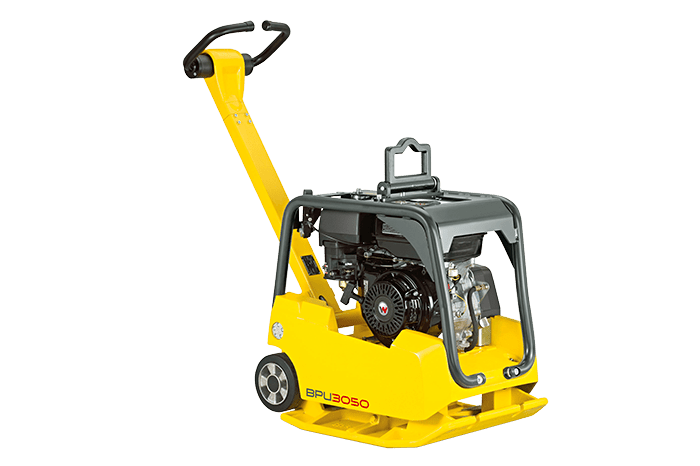

Wacker DPU3050H Diesel Reversing Plate

These reversible plates are ideal for the compaction of interlocking paving stones, trenches, landscape and municipal applications. They come with a unique, integrated wheel set that provides easy one-person movement around the job or shop.

  • Single lever direction control provides for easy forward and reverse operation.
  • Adjustable guide handle can be locked into a vertical position for easy transportation and storage.
  • Easy access throttle control simplifies operation and reduces operator fatigue.
  • Heavy duty frame features an integral central lifting point for easy on/off loading and placement of plate into trenches.
  • Specially designed shockmount system offers virtually vibration-free guide handle for operator comfort and increased productivity.
BPU 3050A
Operating data
Operating weight  lb 385.8
Centrifugal force  lbf 6,744
Base plate thickness  in 0.4
Height (without guide handle) in 29.8
Operating height Adjustable guide handle – Down in 31.5
Operating height Adjustable guide handle – Up in 45
Operating width  in 19.7
Frequency  Hz 90
Advance travel (depending on soil & environmental factors) ft/min 68.9
Surface capacity (depending on soil & environmental factors) ft²/h 6,781
Gradeability (depending on soil & environmental factors) % 30
Engine / Motor
Engine / Motor type  Air-Cooled, Single Cylinder 4-cycle engine
Engine / Motor manufacturer  Hatz
Engine / Motor  1B30
Displacement  in³ 16.47
Operating performance (DIN ISO 3046) hp 6.8
at rpm  rpm 3,600
Fuel consumption  US gal/h 0.15
Tank capacity Fuel US qt 5.3
Power transmission  From drive motor via centrifugal clutch and V-belt direct to exciter.
Fuel type  Diesel
